MAIN FEATRUES

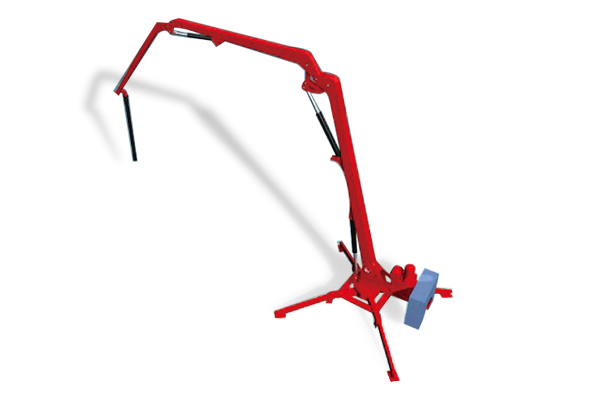

1. The concrete placing boom is used widely for horizontal concrete placing at roof of buildings, by using which the overall working efficiency of the project can be promoted.
2. For HG28/HG32 series, the climbing frames support internal climbing through floors and shafts on site with limited space. For HG38, can be increased the heigh like tower crane.
3. The machine is fully hydraulic driven and can be slewed 360'.
4. The balance valve and solenoid directional valve are products of well-known brand.
5. The main electric components are from Omron or Schneider.
6. The modes of operation: Radio remote control and cable remote control.
7.There are two methods to erect the equipment: freestanding stationary and anchored
TECHNICAL SPECIFICATIONS
|
Delivery pipe dimension (outside diameter*thickness) (mm*mm)
|
Φ133*4
|
|
Delivery hose dimension (inside diameter*length)("*mm)
|
5"*3000
|
|
Radius of placing boom (m)
|
28
|
|
Stationary height (m)
|
23.97
|
|
1st section length (m)
|
8.55
|
|
2nd section length (m)
|
7.27
|
|
3rd section length (m)
|
6.11 |
|
4th section length (m)
|
6.07 |
|
Slewing range
|
360°
|
|
Screed
|
15
|
|
Mode of operation
|
cable remote control, radio remote control
|
|
Power
|
380V/50HZ
|
