MAIN FEATURES

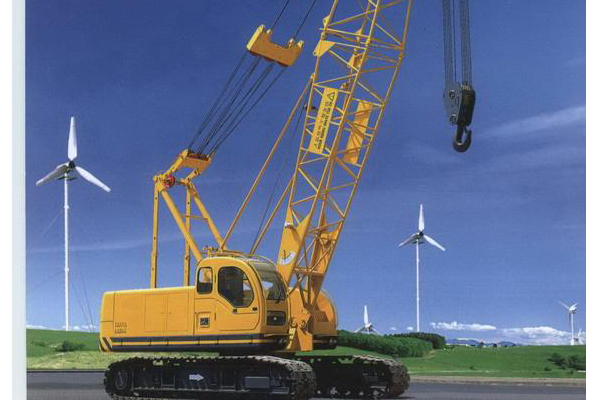

Absorbed foreign advanced technology, develops the hydraulic drive and fully slewing crawler crane of lattice boom, which is the first product making use of the pilot Proportional technology in China.
TECHNICAL SPECIFICATIONS
|
Item |
Unit |
Parameter |
|---|---|---|
|
Max. lifting capacity |
t |
80 |
| Max.load moment |
kN.m |
337 |
| Boom length |
m |
13-58 |
|
Elevation angle |
° |
30-80 |
|
Main winch system |
m/min |
0-120 |
|
Aux.winch system |
m/min |
0-120 |
|
Elevating system |
m/min |
0-57 |
| Grade-ability | 30% | |
|
Swing speed |
r/min |
0-2 |
|
Max. travel speed |
km/h |
1.2 |
|
Mean ground pressure |
MPa |
0.087 |
|
Engine output |
KW |
200 |
|
Jib length |
m |
9-18 |
|
Jib erection angle |
° |
10/30 |
|
Max. weight of single part in transport state |
t |
28 |
|
Dimension of single part(main machine) in transport state(L×W×H) |
m |
6.5×3.3×3.5 |
