MAIN FEATURES

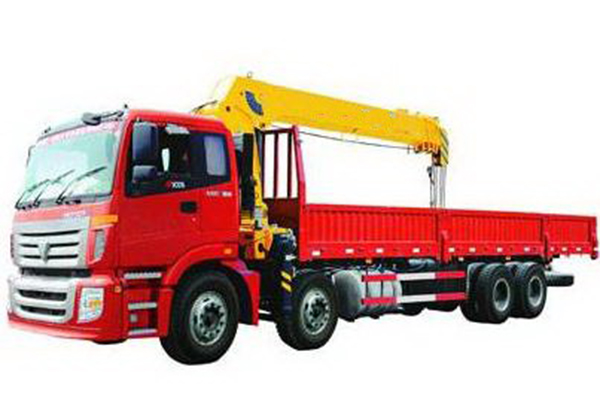

With the advantages of convenient operation, high efficiency, safety and reliability, the truck mounted crane features high speed, and strong gradeability.
TECHNICAL SPECIFICATIONS
|
Model |
SQ14ZK4Q |
Unit |
||||||
|
Max Lifting Moment |
35 |
t.m |
||||||
|
Max Lifting Capacity |
14000 |
kg |
||||||
|
Recommend Power Needed At Recommend Oil Flow |
32 |
kw |
||||||
|
Max Oil Flow of Hydraulic System |
63 |
L/min |
||||||
|
Rated Pressure Of Hydraulic System |
26 |
MPa |
||||||
|
Oil Tank Capacity |
220 |
L |
||||||
|
Rotation Angle |
(360°)All Rotation |
° |
||||||
|
Crane Weight |
4800 |
kg |
||||||
|
Installation Space |
1300 |
mm |
||||||
|
Choice of Chassis |
BJ1317VNPJJ-S5 FOTON；NXG1310D3ZEX XCMG |
|||||||
|
SQ14ZK4Q Working Radius (m) |
2.5 |
4.046 |
5.826 |
7.646 |
9.516 |
11.4 |
||
|
Lift Capacity (kg) |
140000 |
8400 |
5478 |
4080 |
3148 |
|||
