MAIN FEATURES

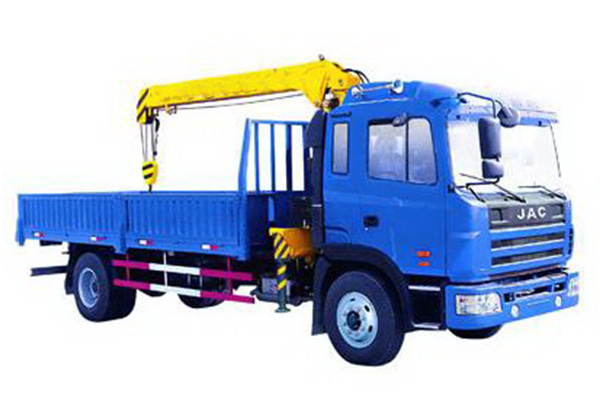

With the advantages of convenient operation, high efficiency, safety and reliability, the truck mounted crane features high speed, and strong gradeability.
TECHNICAL SPECIFICATION
|
|
||||||
|
Model |
SQ6.3SK3Q |
Uint |
||||
|
Max Lifting Capacity |
6300 |
kg |
||||
|
Max Lifting Moment |
15.7 |
T.M |
||||
|
Recommend Power |
20 |
kw |
||||
|
Max Oil Flow of Hydraulic System |
40 |
L/min |
||||
|
Max Pressure of Hydraulic System |
20 |
MPa |
||||
|
Oil Tank Capacity |
90 |
L |
||||
|
Rotation Angle |
All Rotation |
|||||
|
Crane Weight |
2270 |
kg |
||||
|
Installation Space |
900 |
mm |
||||
|
Choice of Chassis |
CA1163P7K2L3E 解放；CA1176PK2L9T3A95 柳特；CA1170PK2L7T3EA80青岛解放；CA1140PK2L3EA80 青岛解放；DFL1140B东风；EQ1126KJ1东风；HFC1202KR1K3江淮；EQ1141NBJ2东风；EQ5161GFJ7东 风；BJ1317VNPJJ-S5北汽福田；EQ5201GFJ6东风；LZ1160LCMT东风柳汽；DFL1250A9东 风；BJ5317ZNPJJ-S北汽福田；NXG1160D3ZAL1X徐工； |
|||||
|
SQ6.3SK3Q working radius(m) |
2.5 |
3.96 |
6.3 |
8.6 |
11 |
|
|
Lift Capacity(kg) |
6300 |
2800 |
1600 |
1200 |
600 |
|
