PRODUCT
Main Features

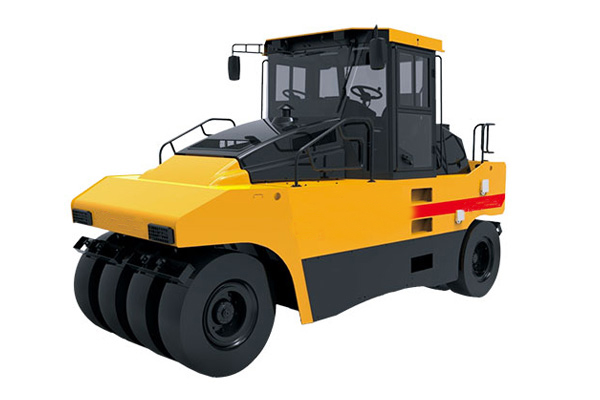

1. Pneumatic smooth-tyre roller is suitable for compaction of various cohesive and non-cohesive materials such as sandy soil, crushed stone, stabilized soils, bituminous concrete and rolling cement concrete on road surface construction, especially for final compaction of asphalt surface on high-class highway, which is super quality compaction equipments for high-class highway, airport, municipal road and industrial ground.
2. Leading brand of diesel turbocharged and water-cooled Cummins engines with advanced performance.
3. Compact gearbox with speed-shift synchronous unit gearbox for advanced design and convenient control.
4. Power sprinkler system with corrosion free materials and 800L high capacity reinforced polyethylene water tank for extended operation.
5. Infrared vehicle video monitor system for convenient operations.
6. Unique beautiful and compact appearance with lower gravity-center.
7. Spacious and closed operator’s cab with ventilating and air condition devices (Optional)
Technical Specifications
|
Item |
R1016T |
|
Engine |
CUMMINS CHINA |
|
Model |
4BT3.9 |
|
Rated power (kW) |
75 |
|
Rotating Speed (r/min) |
2400 |
|
Max. Operating Weight (kg) |
16000 |
|
Min. Operating Weight (kg) |
10000 |
|
Max. Travel Speed (Km/h) |
14 |
|
Tyre Number |
4+5 |
|
Tyre Contact Pressure (kPa) |
150-300 |
|
Turning Radius (mm) |
7500 |
|
Rolling Width (mm) |
2290 |
|
Wheel Overlap (mm) |
40 |
|
Gradeability (%) |
20 |
|
Overall Dimension (mm) |
4770x2290x3100 |
