PRODUCT

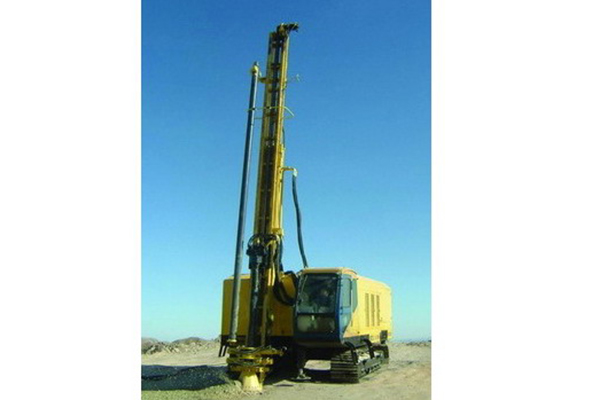

Integrated Hydraulic down-hole drilling rig is the leading products of POTENTIAL brand. The main technical level of which, with nine patents, has remain the national leading and international advanced level.
TECHNICAL SPECIFICATIONS
| Model |
D120C100C |
| Apeture (mm) |
90~120 |
| Drilling depth(m) |
~35(optional) |
| Drilling orientation(° ) |
Multiangle |
| Wind pressure(Mpa) |
1.05~2.0 |
| Rotation torque(N. M) |
2800 |
| Feed stroke(m/min) |
3.5~5.5 |
| Feed Pressure(KN) |
4~20 |
| Lifting speed(m/min) |
0~25 |
| Lifting capacity(KN) |
35 |
| Drill rod length(m) |
3~5 |
| Travel mode |
1.35/2.45 |
| Travel speed(KM/h) |
Hydraulic Track |
| Gradeability(° ) |
28 |
| Dust collection type |
Water mist(or dry dust collection) |
| Power supply |
225HP |
| Gross weight(T) |
16 |
| Overall Dimension(mm) |
W.: 5560× 2900× 5500~7550 |
|
T.: 5160× 2650× 5500~7850 |
