PRODUCT

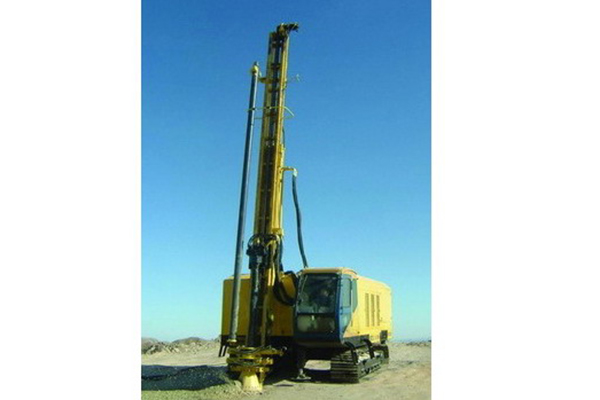

Integrated Hydraulic down-hole drilling rig is the leading products of POTENTIAL brand. The main technical level of which, with nine patents, has remain the national leading and international advanced level.
TECHNICAL SPECIFICATIONS
| Model |
D165B |
| Apeture (mm) |
152/165/180 |
| Drilling depth(m) |
10~20(optional) |
| Drilling orientation(° ) |
single direction 60~90 |
| Wind pressure(Mpa) |
1.05~1.4 |
| Rotation torque(N. M) |
4200 |
| Feed stroke(m/min) |
6~11 |
| Feed Pressure(KN) |
4~20 |
| Lifting speed(m/min) |
0~20 |
| Lifting capacity(KN) |
60 |
| Drill rod length(m) |
5~10 |
| Travel mode |
1.35/2.45 |
| Travel speed(KM/h) |
Hydraulic Track |
| Gradeability(° ) |
25 |
| Dust collection type |
Water mist(or dry dust collection) |
| Power supply |
80+300HP |
| Gross weight(T) |
22 |
| Overall Dimension(mm) |
W.: 6250× 3900× 8800~13800 |
|
T.: 8800~13800× 3000× 3580 |
