Model |
|
CPCD40 |

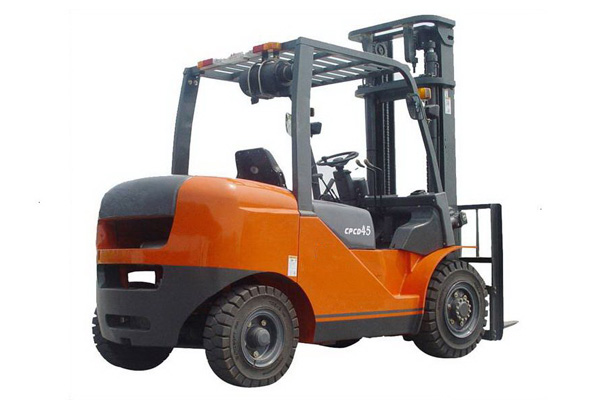

CPCD45 |
|
|
Load capacity |
kg |
4000 |
4500 |
|
|
Load center |
mm |
500 |
600 |
|
|
Max. lifting height(VM300 mast) |
mm |
3000 |
3000 |
|
|
Free lift (VM mast) |
mm |
150 |
140 |
|
|
Speed |
Max Travelling full/no load |
km/h |
16.5/18 |
18/19 |
|
Lifting full/no load |
mm/s |
380/480 |
410/430 |
|
|
Lowering full/no load |
mm/s |
450/420 |
380/340 |
|
|
Turning raduis (outsite) |
mm |
2560 |
2780 |
|
|
Right angle stacking aisle width(200mm clearance) |
mm |
4450 |
4585 |
|
|
Total length (with fork) |
mm |
3890 |
3100 |
|
|
Total width |
mm |
1345 |
1485 |
|
|
Mast height(fork lowered) |
mm |
2150 |
2300 |
|
|
Overall height fork raised(with backrest) |
mm |
4250 |
4266 |
|
|
Height to head guard |
mm |
2140 |
2270 |
|
|
Fork size |
L×W×T |
mm |
1070×150×50 |
1220×150×50 |
|
Tilt range |
Mast forward/backward |
deg |
6/12 |
6/12 |
|
Grounde clearence |
At lowest point(mast) |
mm |
120 |
100 |
|
Frame |
mm |
135 |
240 |
|
|
Wheelbase |
|
mm |
1800 |
2000 |
|
Tread |
front |
mm |
1120 |
1180 |
|
rear |
mm |
970 |
1190 |
|
|
Front overhang |
mm |
485 |
560 |
|
|
Truck weight(no load) |
kg |
5100 |
7230 |
|
|
Front(solid tires) |
|
28*9-15 |
300-15-18PR |
|
|
Rear(solid tires) |
|
6.50-10 |
7.00-12-12PR |
|
|
Model |
|
ISUZU 4JG2 |
Mitsubishi S6S |
|
|
Rated power |
KW/rpm |
61/2450 |
52/2300 |
|
|
Rated torque |
Nm/rpm |
190/1800 |
248/1700 |
|
|
Number of cylinder |
|
4 |
6 |
|
|
Displacement |
CC |
3.059 |
4.996 |
|
