Features |
Model |
Power shift T/M |

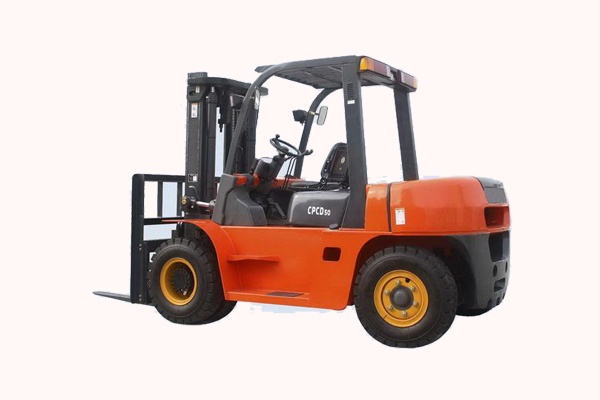

CPCD50 |
CPCD60 |
CPCD70 |
CPCD80 |
CPCD100 |
|
|
Load capacity |
kg |
5000 |
6000 |
7000 |
8000 |
10000 |
||
|
Load center |
mm |
600 |
600 |
600 |
600 |
600 |
||
|
Power unit |
|
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
||
|
Operator type |
|
Driver/seat |
Driver/seat |
Driver/seat |
Driver/seat |
Driver/seat |
||
|
Tire type |
Front/rear |
Pnenumatic |
Pnenumatic |
Pnenumatic |
Pnenumatic |
Pnenumatic |
||
|
Wheel |
Front/rear |
4/2 |
4/2 |
4/2 |
4/2 |
4/2 |
||
|
Dimension |
Max. lifting height |
mm |
3000 |
3000 |
3000 |
3000 |
3000 |
|
|
Free lift |
mm |
205 |
205 |
210 |
205 |
205 |
||
|
Fork size |
L×W×T |
mm |
1220×150×60 |
1220×150×60 |
1220×150×65 |
1220×175×75 |
1220×175×75 |
|
|
Tilt range Mastf orward /backward |
deg |
6/12 |
6/12 |
6/12 |
6/12 |
6/12 |
||
|
Overall length(without fork) |
mm |
3455 |
3530 |
3590 |
3955 |
4255 |
||
|
Total width |
mm |
1995 |
1995 |
1995 |
2245 |
2245 |
||
|
Mast height (fork lowering) |
mm |
2500 |
2500 |
2500 |
2850 |
2850 |
||
|
Overall height fork raised With backrest |
mm |
4420 |
4420 |
4420 |
4330 |
4330 |
||
|
Height to head guard |
mm |
2450 |
2450 |
2450 |
2560 |
2560 |
||
|
Turning raduis(outside) |
mm |
3250 |
3300 |
3360 |
3650 |
3900 |
||
|
Front face of fork to front axle |
mm |
615 |
615 |
620 |
710 |
710 |
||
|
Right angle stacking aisle |
pallet size : 1100×1100 add clearence |
mm |
5500 |
5550 |
5620 |
6000 |
6250 |
|
|
Performance |
Speed |
Max Travelling full/no load |
km/h |
26/30 |
26/30 |
26/30 |
26/30 |
24/30 |
|
Lifting full/no load |
mm/s |
500/550 |
500/550 |
450/550 |
450/500 |
390/410 |
||
|
Lowering full/no load |
mm/s |
450/500 |
450/500 |
450/500 |
530/500 |
470/340 |
||
|
Max.drawbar pull |
full/no load |
kg |
5500/2250 |
5500/2250 |
5400/2200 |
5850/3220 |
5850/3220 |
|
|
Gradeability at 1.6km/h |
full load |
% |
37 |
33 |
29 |
24 |
22 |
|
|
Max. Gradeability |
full/no load |
% |
42/19 |
38/19 |
33/19 |
26/22 |
24/20 |
|
|
Weight |
Truck weight |
kg |
8050 |
8750 |
9450 |
11800 |
12450 |
|
|
Weight distribution |
Full load front/rear |
kg |
11710/1340 |
13090/1660 |
14520/1930 |
17900/1900 |
20160/2290 |
|
|
No load front/rear |
kg |
4020/4030 |
3860/4890 |
3760/5690 |
5550/6250 |
5480/6970 |
||
|
Frame |
Tires |
Number |
front/rear |
4/2 |
4/2 |
4/2 |
4/2 |
4/2 |
|
Model |
front axle |
8.25×15-14PR |
8.25×15-14PR |
8.25×15-14PR |
9.00×20-14PR |
9.00×20-14PR |
||
|
rear axle |
8.25×15-14PR |
8.25×15-14PR |
8.25×15-14PR |
9.00×20-14PR |
9.00×20-14PR |
|||
|
Wheelbase |
mm |
2250 |
2250 |
2250 |
2500 |
2800 |
||
|
Tread |
Front/rear |
mm |
1470/1700 |
1470/1700 |
1470/1700 |
1600/1700 |
1600/1700 |
|
|
Ground clearence |
At lowest point(mast) |
mm |
190 |
190 |
190 |
245 |
245 |
|
|
Frame |
mm |
230 |
230 |
230 |
320 |
320 |
||
|
Brake |
Service brake |
|
Brake booster-Dynamic braking |
|||||
|
Parking brake |
|
Mechanical-hand lever |
||||||
|
Engine & transimission |
Battery |
Voltage/capacity |
V/AH |
2×12V-80AH |
||||
|
Engine |
Model |
|
Chaochai 6102BG |
|||||
|
Rated power |
JIS PS |
110/2500 |
||||||
|
Rated torque |
JIS kg-m |
36/1650 |
||||||
|
Number of cylinders |
|
6 |
||||||
|
Placement |
Lit |
5.785 |
||||||
|
Fuel tank capacity |
Lit |
140 |
||||||
|
Transmission |
Speed forward/backward |
Power shift T/M |
2-2 power shift T/M |
|||||
|
Operating pressure |
Hydraulic system pressure |
kg/cm² |
200 |
|||||
