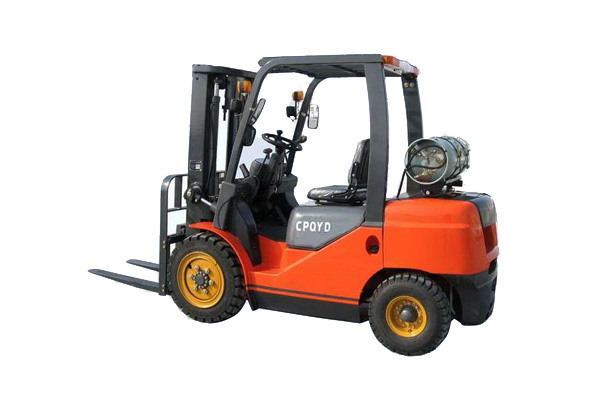

CPQ(D)Y20-35

Share This Product:

BRIGHT SPOT OF PRODUCT

MAIN FEATURES

1. Enhanced comfort through innovative design.

2. Hydraulic transmission and mechanical transmission types are all available.

3. Flexible steering and small turning radius, with full Hydraulic Steering System.

4. We use scientific ergonomic method to design Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.

5. A variety of domestic and imported engines for you to choose. The emission meets EC and EPA new regulation.

6. Specially designed container door frame can enter the container for operation. This series forklifts can be equipped with two, or three full free lift mast, and various attachments, according to user’s demand.

7. Enclose cabin is made of assembling plate on overhead guard, high strength overhead is design to ensure the safety.

8. Operator presence sensing system, the system will cut off the driving force to prevent accidents, when the driver leave the seat during operation.

TECHNICAL SPECIFICATION

Technical parameters
Model	unit	CPQ(D)Y20	CPQ(D)Y25	CPQ(D)Y30	CPQ(D)Y35
Load Capacity	Kg	2000	2500	3000	3500
Load Center	mm	500
Lifting height	mm	3000
Operating at maximum height	mm	4030		4260
Mast tilt angle	degree	6°/12°
Hold under mast	mm	110
Turning Radius	mm	2170	2230	2420	2490
Drive speeds(F/B)	Km/h	20/19.5
Lifting speed	mm/s	500/530		470/520	370/400
Falling speed	mm/s	≤600
Gradeability	%	20	18	15	16.5
Complete size(LxW)	mm	3590x1160	3640x1160	3790x1230	3855x1230
Fork size(LxWxT)		1070x122x40	1070x122x40	1070x125x45	1070x125x50
No fork size		2520	2570	2720	2785
Closed mast height		1995	1995	2055	2155
Overhead guard height		2070	2070	2085	2085
Fork spacing adjustment	mm	245-1020		250-1090
Wheelbase	mm	1600		1700
Wheel distance(F/B)	mm	970/970		1000/970
Stopping distance (Unloaded)	mm	3800		4000	4500
Tire(F/B)	-	7.00-12-12PR / 6.00-9-10PR	7.00-12-12PR / 6.00-9-10PR	28X9-15-12PR / 6.50-10-10PR	28X9-15-12PR / 6.50-10-10PR
Engine model	-	NISSAN K21		NISSAN K25
Engine displacement	L	2.065		2.488
Rate power/speed	Kw/Rpm	31.2/2250		37.4/2300
Engine rate torque	Nm/rpm	143.7/1600		176.5/1600
Fule tank capacity	L	58
Total weight	Kg	3310	3680	4260	4760

Technical parameters
Model	unit	CPQ(D)Y20	CPQ(D)Y25	CPQ(D)Y30	CPQ(D)Y35
Load Capacity	Kg	2000	2500	3000	3500
Load Center	mm	500
Lifting height	mm	3000
Operating at maximum height	mm	4030		4260
Mast tilt angle	degree	6°/12°
Hold under mast	mm	110
Turning Radius	mm	2170	2230	2420	2490
Drive speeds(F/B)	Km/h	20/19.5
Lifting speed	mm/s	500/530		470/520	370/400
Falling speed	mm/s	≤600
Gradeability	%	20	18	15	16.5
Complete size(LxW)	mm	3590x1160	3640x1160	3790x1230	3855x1230
Fork size(LxWxT)		1070x122x40	1070x122x40	1070x125x45	1070x125x50
No fork size		2520	2570	2720	2785
Closed mast height		1995	1995	2055	2155
Overhead guard height		2070	2070	2085	2085
Fork spacing adjustment	mm	245-1020		250-1090
Wheelbase	mm	1600		1700
Wheel distance(F/B)	mm	970/970		1000/970
Stopping distance (Unloaded)	mm	3800		4000	4500
Tire(F/B)	-	7.00-12-12PR / 6.00-9-10PR	7.00-12-12PR / 6.00-9-10PR	28X9-15-12PR / 6.50-10-10PR	28X9-15-12PR / 6.50-10-10PR
Engine model	-	NISSAN K21		NISSAN K25
Engine displacement	L	2.065		2.488
Rate power/speed	Kw/Rpm	31.2/2250		37.4/2300
Engine rate torque	Nm/rpm	143.7/1600		176.5/1600
Fule tank capacity	L	58
Total weight	Kg	3310	3680	4260	4760
