PRODUCT
MAIN FEATURES
1.Good technical parameters with competitive price
2. Maneuver in tight spaces, turn within its own length
3. A broad product line, innovative designs, and unsurpassed range of job-matched attachments.
4.Excellent reach & lift height for truck loading
5.More than 20 series attachments for option: pallet fork, swing blade, utilityfork grapple, asphalt cutter, backhoe, hydraulic hammer, 4 in 1 bucket, auger,cultivator, and tooth bucket etc
6.Attachment can be used with bobcat type skid loader
7.World famous hydraulic systems from America,Japan and Italy
8.Famous brand engine with EPA or EC stage II or III from abroad and domestic
9.Versatility, maneuverability and reliability
TECHNICAL SPECIFICATION

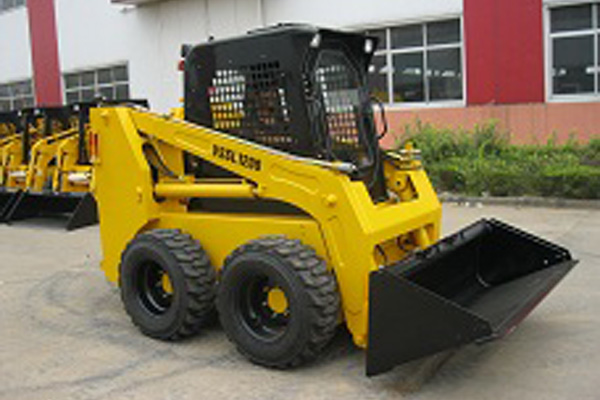

| Item | SSL1200 | |
| Rated operating capacity | kg | 1200 |
| Tipping load | kg | 2000 |
| Bucket capacity | m3 | 0.5 |
| Operating weight | kg | 3400 |
| Max. travel speed | km/h | 12 |
| Hydraulic pump flow | L/min | 75 |
| Fuel tank capacity | L/min | 80 |
| Overall dimensions | mm | 3345*1850*2040 |
| Height at maximum extension | mm | 3780 |
| Height to bucket hinge pin | mm | 3450 |
| Width with bucket | mm | 1900 |
| Track width | mm | 1500 |
| Wheelbase | mm | 1020 |
| Ground clearnce | mm | 260 |
| Dump angle | ° | 45 |
| Dumping height | mm | 2900 |
| Engine model | WEICHAI Deutz D226B-4T | |
| Net power | 100HP/2500rpm | |
| Type | 4 Cylinder in-line,water cooled,4 stroke, Diesel engine | |
| Displacement | L | 4.2 |
