Vibrating Feeder
CAPACITY
96-1500t/h

MAX FEEDING SIZE
500mm-1000mm

RAW MATERIALS
Granite, limestone, concrete, lime, plaster

APPLICATION
Metallurgical, coal, mineral processing, building materials, chemical engineering, grinding, etc.


Contact Us Request a quote
Share This Product:
  • BRIGHT SPOT OF PRODUCT
MAIN FEATURES

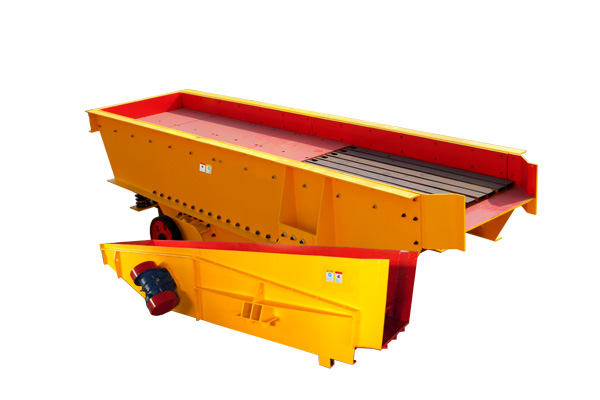

ZSW Series Vibrating Feeder is the latest type of super short linear vibrating feeder, designed specifically for feeding large lump of materials evenly before the primary crushers at crushing & screening station.

This series is various in models, solid in construction, impact-proof and reliable in operation. It can not only assure constant and even feeding, but also can screen the feeding materials, which can make the system more economical and rational. It is indispensable equipment in the screening & crushing production line.


FEATURES:

1. The latest super short liner vibrating feeder;
2. Designed specifically for feeding large lump of materials;
3. It can screen the materials efficiently under the condition of guaranteeing continuous and uniform feeding.


TECHNICAL SPECIFICATION


Model

Max. Feeding Size  (mm)

Capacity (t/h.)

Eccentric Shaft  Speed    (rpm)


Motor Power(kw)


Motor Qty. (pcs)

Installation Slope(º)

Overall Dimension    (L x W x H)（mm）


Weight (t)

  Chute Size

( mm ×mm)

GZD-250×75

300

50-80



1.5x2

2

0-10

2580x1430x600

1.29

2500x750

GZD-300×90

450

80-100



2×3.0

2

0-10

3050×1430×1550

2.96

3000×900

GZD-370×100

500

100-150



2×3.7

2

0-10

3980×1878×866

3.70

3700×1000

GZD-490×110

580

120-280



2×5.5

2

0-10

5200×900×950

4.00

4900×1100

GZD-500×120

600

200-400



2×5.5

2

0-10

5450×2000×900

5.20

5000×1200

ZSW-380×96

500

100-160

500-720

11

1

0

3882×1684×1340

4.21

3800×960

ZSW-490×110

580

120-280

500-800

15

1

0

4957×1841×1365

5.41

4900×1100

ZSW-590×110

600

200-350

500-800

22

1

0

6000×2500×2150

6.05

5900×1100

ZSW-600×130

600

400-560

500-800

22

1

0

6028×2580×2083

7.50

6000×1300
