MAIN FEATURES



A ball mill is an efficient tool for grinding various kinds of materials into fine powder. They are generally used to grind material which is 1/4 inch or smaller, down to a particle size of 20 to 75 microns. For the ball mills to be efficient, the grinding has to be done in a closed system with the oversize material being continuously re-circulated into the cylindrical barrel for reduction. Various classifiers such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills.

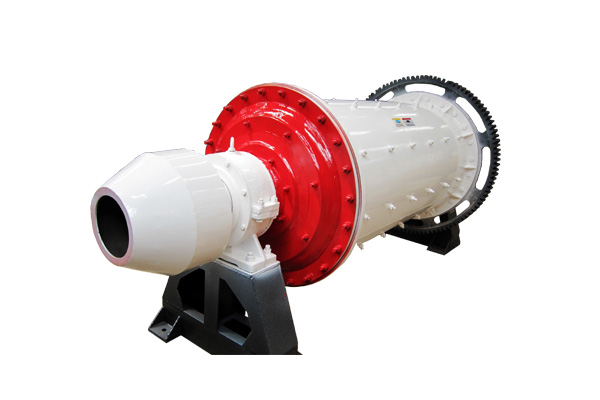

Ball mills are largely used in the mining industry for the grinding and selection of material. They are also used in the construction industry (for building material), chemical industry, among others. The grinding may be carried out either through the dry process or the wet process.Ball Mill



WORKING PRINCIPLE



The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.





TECHNICAL SPECIFICATION

Model	Rotation speed （r/min）	Ball load （t）	Feeding size （mm）	Output size （mm）	Capacity （t/h）	Power （kw）	Weight （t）
Ф900×1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	4.6
Ф900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
Ф1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ф1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	15.6
Ф1500×4500	27	11	≤25	0.074-0.4	3-6	90	21
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ф1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	28
Ф1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	32
Ф1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	34
Ф1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	36
Ф2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	210	34
Ф2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	42
Ф2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	50
Ф2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	48.5
Ф2200×6500	21.7	35	≤25	0.074-0.4	14-26	370	52.8
Ф2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	54
Ф2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	56
Ф2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	65
Ф2700×4000	20.7	40	≤25	0.074-0.4	12-80	400	94
Ф2700×4500	20.7	48	≤25	0.074-0.4	12-90	430	102
Ф2700×5500	20.7	50	≤25	0.074-0.4	12-90	450	115
Ф3200×4500	18	65	≤25	0.074-0.4	Depending on technological conditions	800	137
