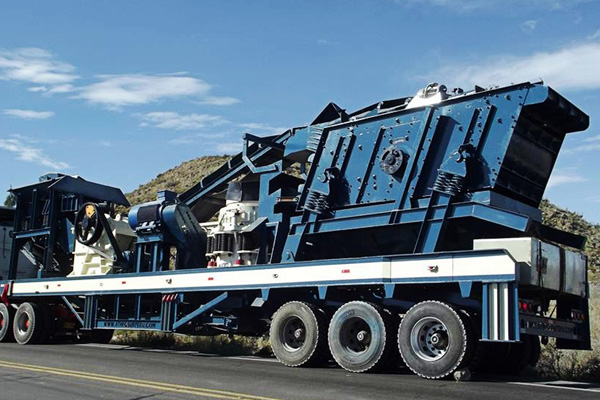

Mobile Cone Crusher
CAPACITY
25-586t/h

MAX FEEDING SIZE
38-450mm

RAW MATERIALS
River pebbles, rocks (limestone, granite, basalt, diabases, andesite, etc.), ore tailings.

APPLICATION
Widely used in construction waste, mine, mining, sand and cement companies.

Share This Product:
  • BRIGHT SPOT OF PRODUCT
Application of Mobile  Cone Crusher:

The Mobile Crusher is applied to multistage crush large materials, and then screens the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers.


REMARK:

1. A complete plant; all the machines are installed on the trailer, save the occupation space, enhances the working efficiency;
2. Strong flexibility; the mobility is very good, so it can extend with the raw material places or the construction place, and Mobile Crusher(Portable Crusher) can also make multiple matching, get to different product requirements;
3. High efficiency and saving energy;
4. Reliable working, convenient operation, and easy maintenance


TECHNICAL SPECIFICATION

Model WL3S1548P90 WL3S1848C100 WL3S1854C116 WL3S1860C130 WL3S2160C138
Shaker model 3YA1548 3YA1848 3YA1854 3YA1860 3YA2160
Cone crusher model PYB900 WLC1000 WLC1160 WLC1300 WLC1380
Belt conveyor B500×7M B650×7M B800×7M B800×8M B800×8M
Tyre configuration Double axles Double axles Double axles Three axles Three axles
Capacity (t/h) 50-90 65-150 115-260 150-390 200-440
Power  (kW) 75 134 160-165 190 260
The maximum Feeding size  (mm) 115 160 180 200 215
Min of Discharge size  (mm) 12 13 13 16 19
Dimebsions  (L×W×H) (mm) 13000×2800×6400 13000×3000×6700 13000×3000×6700 14000×3000×6700 14000×3200×6700
Weight  (t) 43 47 50 53 58
