MAIN FEATURES

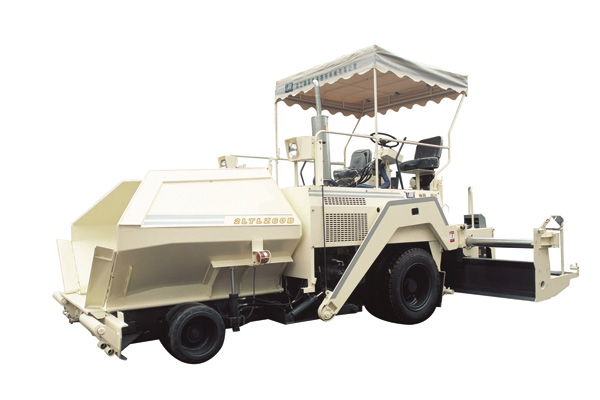

2LTLZ60 asphalt paver is suit to pave asphalt material. It is widely used for the construction of highway, urban road, plaza, and parking lots etc.



Strong powered, compact and with easy operation, mechanical driving. The machine uses double hydraulically telescoped screed and auto leveling sensor device. 2LTLZ60 asphalt paver can pave the road with good leveling and high density. The vulnerable parts use advanced wearable material to secure the performance.



TECHNICAL SPECIFICATION

Product description	Asphalt Paver (Wheel)
Model	2LTLZ60B
Paving width(m)	2.8-6
Paving thickness(mm)	10-250
Paving speed(m/min)	3.07-9.16
Traceling speed(km/h)	2.3-16.84
Engine	DEUTZ ENGINE BF6L913T,86KW
Screed	Hydraulic extension to 5m and mechanical extension after
Leveling unit	Two longitudinal and transverse automatic units
Tamp	/
Driving manner	Mechanical and hydraulic drive
