MAIN FEATURES

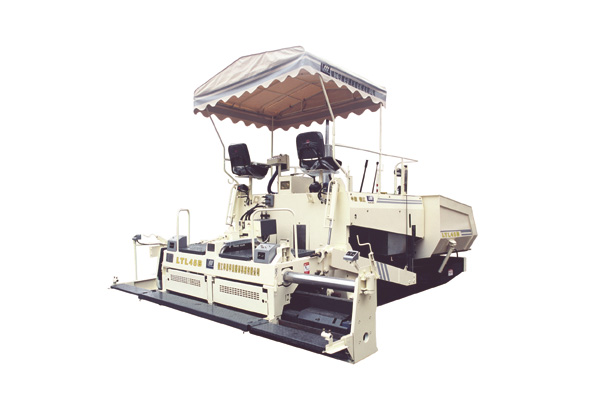

LTL45B asphalt paver is used to pave asphalt for highway, urban road, plaza, and parking lots etc. It is the ideal machine for road construction.



The machine is mechanical - hydraulic driving and is equipped with hydraulically extension screed and automatic leveling unit. LTL45B asphalt paver can pave the road with good leveling and high density. The vulnerable parts use advanced wearable material to secure the performance.



TECHNICAL SPECIFICATION

Product description	Asphalt Paver
Model	LTL45B
Paving width(m)	2.5-4.5
Paving thickness(mm)	10-250
Paving speed(m/min)	2.03-6.07
Traceling speed(km/h)	1.55-4.62
Engine	DEUTZ ENGINE F4L912,46KW
Screed	Hydraulic extension to 4.5m
Leveling unit	Two longitudinal units
Tamp	/
Driving manner	Mechanical and hydraulic drive
