PRODUCT

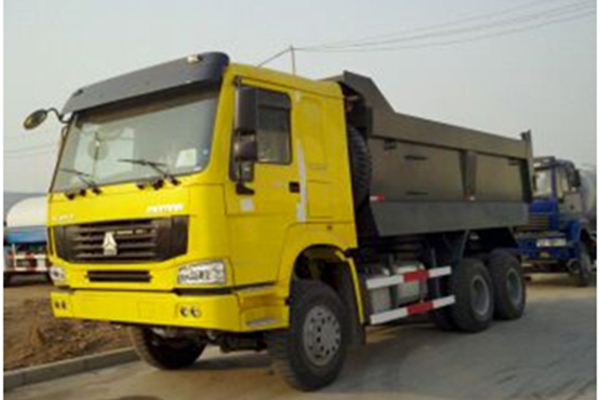

HOWO series heavy duty truck built a new standard for domestic heavy duty truck, aiming at world advanced heavy duty design and manufacturing technology with incorporation of multi-advanced technologies. It is at domestic leading position in vehicle appearance, safety, comfort ability and ergonomics, and creates new driving experience on heavy duty truck; there are multi-types in this series which are selected by Ministry of Communication of the People's Republic of China as first batch recommended vehicle types. There are left hand and right hand driving types.
Note: All the above technical data and pictures are subject to our final confirmation.
 |
Luxury, great and movement appearance The appearance of HOWO is luxury and great which is a combination of fortitude and streamline, sturdiness and elegance; it indicates a leader’s status and leads to a new standard for domestic heavy duty truck on vision and vogue. Every component is connected by care planning to form a perfect integrity; the interior space of the cab reaches to the top grade domestically; sealing performance and clearance control of every connecting part reach to the highest level in China. |
 |
High safety design HOWO heavy duty truck provides complete protection to the driver and passengers by restricted self safety requirement. The body adopts integral steel frame structure welded by fully automatic robot. It is equipped with front under-protection device（FUPD）and transverse cab stabilization device which are the first in China, and it adopts the widest curved surface of front windscreen in China, which embodies the design idea of safety first. |
 |
High efficient and comfortable ergonomic space The interior trimmings and configurations of HOWO heavy duty truck are arranged perfectly with good consideration. HOWO builds a pleasurable driving environment by adopting comfort and ergonomic design connoting to international technology, and applying artificial intelligence, which is the first one in China making HOWO become a true movable “home” and a decent “office”. You can feel the consideration of the designer anywhere you see. |
 |
Technical equipment leading in domestic market HOWO heavy duty truck embodies a series of new development outputs of CNHTC. Strong driving force with high efficient oil saving, relaxing and comfortable operation, special vehicle suspension system, and the third generation of CAN intellectual electric control panel etc. make this brand to be the leader among the similar products domestically. |
TECHNICAL SPECIFICATIONS
| Truck Model | ZZ3257N3647B | |||
| Dimension(Lx W xH)（unloaded）（mm） | 8214×2496×3386 | |||
| Cargo body size (LxWxH) (mm) | 5600x2300x1300, VOLVO Cargo body, T middle lift, bottom 8mm side 6mm, with rear door | |||
| Approaching angle/Departure angle（°） | 19/26 | |||
| Overhang(front/rear) (mm) | 1500/1739 | |||
| Wheel base (mm) | 3625+1350 | |||
| Max speed（km/h） | 75 | |||
| Curb weight（kg） | 12290 | |||
| Loading Weight（kg） | 12580 | |||
|
Engine (Steyr technology, made in China)发动机 |
Model | WD615.47，water-cooled，four strokes，6 cylinders in line with water cooling，turbocharged and inter-cooling, directly injection | ||
| Fuel type | Diesel | |||
| HorsePower, max（kw/rpm） | 371HP，273/2200 | |||
| Emission | EURO2 | |||
| Fuel tanker capacity（L） | 300 | |||
| Transmission | Model | HW19710 | ||
|
Brake system |
Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Steering system | Model | ZF8098 | ||
| Front axle | Steering with double T-cross section beam | |||
| Rear axle | Pressed axle housing, central double reduction with differential locks between axles and wheels | |||
| Tyre | 12.00R20(18PR) | |||
|
Electrical system |
Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
| Cab | HOWO70 cab, all-steel forward control,55ºhydraulically tilt able to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |||
Note: All the above technical data and pictures are subject to our final confirmation.
