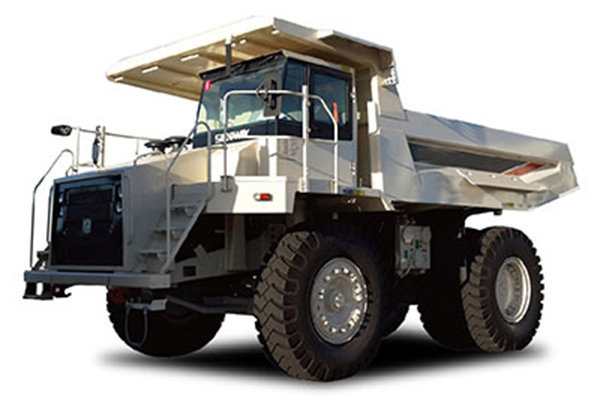

The toughest mining conditions require the top mining dump trucks for mineral haulage. The range of Weilai rigid mining dump trucks with payload ranging from 20 ton to 100 ton, meets the demand requirements of most mining, quarrying, and heavy construction applications.
Weilai off-road mining trucks have been specially designed with a rugged and robust frame to provide superior levels of productivity in the roughest terrain. The dump trucks have been equipped with the latest technologies to offer not only high performance in the most arduous application, but also a safe and comfortable environment for the operator. We are proud that Weilai mining trucks are now contributing towards many mine pits.
Weilai off-road mining trucks have been specially designed with a rugged and robust frame to provide superior levels of productivity in the roughest terrain. The dump trucks have been equipped with the latest technologies to offer not only high performance in the most arduous application, but also a safe and comfortable environment for the operator. We are proud that Weilai mining trucks are now contributing towards many mine pits.
TECHNICAL SPECIFICATIONS
| Engine | |
| Model | Cummins QSM11 |
| Type | Six-cylinder,water-cooled turbocharged,mechanical injection |
| Rated power | 245KW |
| Main Technical Specification | |
| Kerb mass | 23000kg |
| Payload capacity | 32000kg |
| Dump body capacity | 16.1m3 (Struck)/21.1m3 (Heaped) |
| Travelling | |
| Driving model | 4 x 2 |
| Max. Travelling speed | 56km/h (F6/R1 speed) |
| Dimension | |
| Overall size (L x W x H) | 7950mm x 3400mm x4190mm |
| Wheel base | 3605mm |
| Tyre size | 21.00-35(36PR) |
