TECHNICAL SPECIFICATIONS
|
Item |
Parameter |
||
|
Product Name |

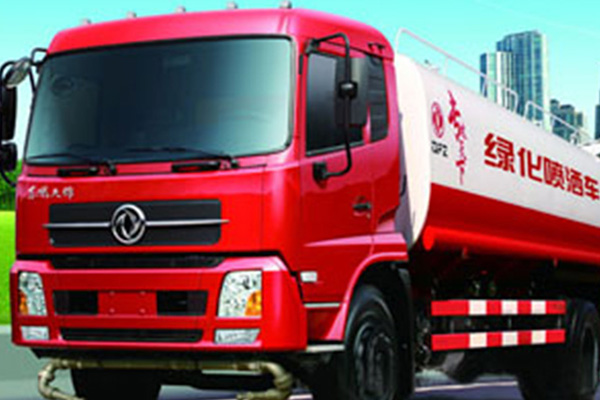

Dongfeng Kangba Water Truck |
||
|
Vehicle Model |
CLW5070GSS3 Water Truck |
||
|
Chinese Brand |
CLW |
||
|
Chassis Model |
EQ1070TJ9AD3 |
||
|
Engine Type |
ISDE140 30 |
Power of Engine(kw) |
103 |
|
Exhaust of Engine (ml) |
4500 |
Engine Manufacturer |
Dongfeng Cummins Diesel |
|
Fuel Type |
diesel |
Emission Standard |
EUROⅢ |
|
Overall Dimension(mm) |
6900×2320×2450 |
Body internal dimensions (mm) |
3800×1450×840 |
|
Overall Weight（kg） |
Appro×7000 |
Mass in Working Order （kg） |
Appro×4305 |
|
Rating Quality（kg） |
Appro×2980 |
Fact Loading |
6000-7000 |
|
Approach/departure angle |
18/14° |
Max Speed （km/h） |
85 |
|
Wheel Base （mm） |
3800 |
Number of axles |
2 |
|
Pieces of Spring |
7/8+5 |
Traction system |
4×2 |
|
Tire specification |
7.50-16 |
F/R track base（mm） |
1750/1586 |
|
Transmission |
6-speed with over drive |
Electric system |
24v |
