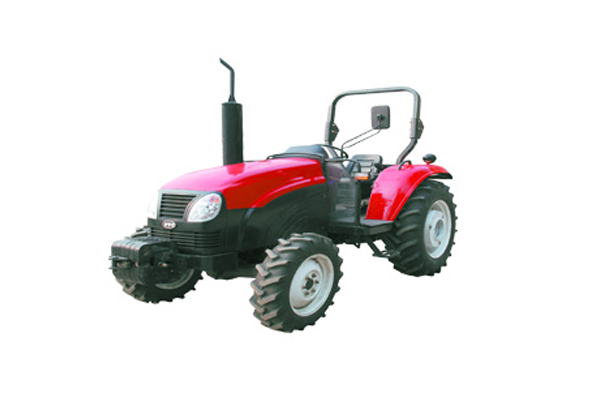

TR-504

Contact Us Request a quote
Share This Product:
  • BRIGHT SPOT OF PRODUCT
Main Features

The TR-504  tractor is equipped with wet disc brakes, ensuring desirable braking performance and high reliability. It adopts the planetary end transmission and double action clutches. It is applicable to paddy fields and dry farmlands. It adopts the engagement sleeve gear shifting and force and position combined regulation. It is large in wheel span and axle base, heavy in dead load, and desirable in chassis stability. Besides, it is equipped with safety anti-toppling shelf for optional assemblage. Technical Specifications

Technical Specifications

Engine



Type

Four-cylinder, vertical, water-cooled, four-stroke, direct injection diesel

model

YTR4105T54

Rated power

kW

37

Rated rotation speed

r/min

2200

Transmission System

Speed range

km/h

2.37-31.06

Overall Dimension

mm

3797×1784×1520

Min. ground clearance

mm

390

Machine boby





Tyres, front / rear



7.50-16/12.4-28

Axle base

mm

2000

Front wheel tread / Rear wheel tread

mm

1350-1450/1300-1600

Min. turning radius

m

4.1±0.3

Min. operating weight

kg

1830

PTO shaft type



Semi-independent

PTO shaft rotation speed

r/min

8.8
