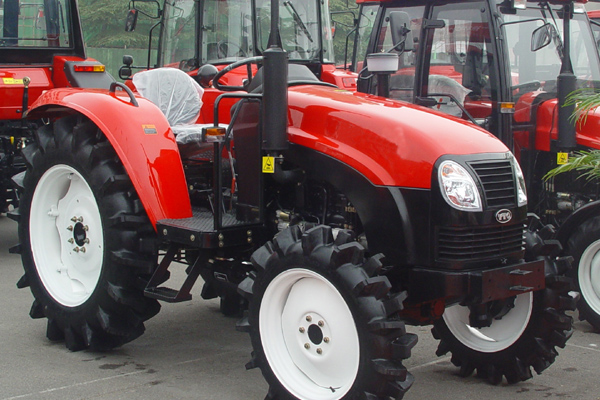

TR-604

Contact Us Request a quote
Share This Product:
  • BRIGHT SPOT OF PRODUCT
Main Features

Fit for paddy fields,The TR-604  tractor is equipped with wet disc brakes, ensuring desirable braking performance and high reliability. It adopts the planetary end transmission and double action clutches. It is applicable to paddy fields and dry farmlands. It adopts the engagement sleeve gear shifting and force and position combined regulation. It is large in wheel span and axle base, heavy in dead load, and desirable in chassis stability. Besides, it is equipped with safety anti-toppling shelf for optional assemblage.

Technical Specifications

Engine





model



YTR4105T51SA-1

Rated rotation speed

r/min

2200

Type

Four-cylinder, vertical, water-cooled, four-stroke, direct injection diesel

Speed range(Forward)

km/h

2.95-38.62

Speed range (reverse)

km/h

2.52~33.09

No. of gears

4X2

Overall Dimension

mm

3882×1715×1810

Min operable mass

kg

2550

Min. ground clearance

mm

430

Machine boby





Axle base

mm

2127

Front wheel tread / Rear wheel tread

mm

1250/1300-1600

Min. turning radius

m

4.2+/-0.3

Min. operating weight

kg

2245

Specific fuel consumption under rated conditions

g/kW.h

≤242

Tyres, front / rear



8.3-24/11-32(paddy field)

Lifting capacity

kN

9.9

PTO shaft type



Semi-independent

PTO shaft rotation speed

r/min

540/1000
