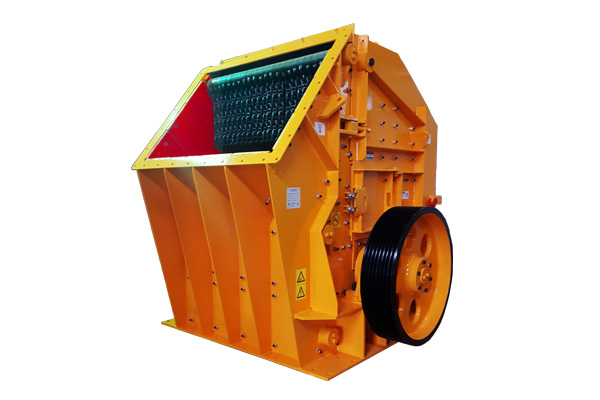

PFC Series Impact Crusher is usually acted as medium crushing machine after coarse crushing. It is capable of crushing mineral rocks with compressive strength up to 320 MPa, featuring with greater processing capability and finer discharging particles. The crushed products are in cubic shape with low flakes and no internal cracks. This type of equipment is preferable to be selected as the first choice for crushing fine quality stone materials used for highway, water conservancy, airport, civil construction and other industries.



MAIN FEATURES


1. The combination of multi crushing chambers can make the product in uniform particle sizes, which are suitable for crushing hard rocks.

2. The bottom impact plate structure makes the crushed products smaller in cubic shape with no internal cracks.

3. These series have big feed opening which is more easily for disposing production lines.

4. New type of high alloy abrasion material makes the service life of blow bars, impact plates, and liner plates longer.



TECHNICAL SPECIFICATIONS

Model	Feed Opening(mm)	Rotor diameter (mm)	Rotor width (mm)	Power (kW)	Capacity(t/h)in diffrernt discharge size(mm)						Weight (t)
					76	63	51	38	25	19
PFC1010	930×800	1020	914	55-75	135	120	110	94	80	60	10.3
PFC1012	1160×800	1020	1143	90-110	170	150	137	120	100	75	11.5
PFC1016	1540×800	1020	1524	110-132	215	186	160	145	116	95	13.35
PFC1408	1065×778	1330	762	55-75	173	152	140	121	102	76	11.4
PFC1410	1065×930	1330	914	90-110	209	184	169	145	124	92	13.9
PFC1412	1160×1065	1330	1143	132-160	261	230	211	184	155	116	16
PFC1416	1540×1065	1330	1524	185-220	422	382	344	303	254	193	19.5
PFC1420	1844×1065	1330	1848	185-220	548	496	448	394	330	250	22
