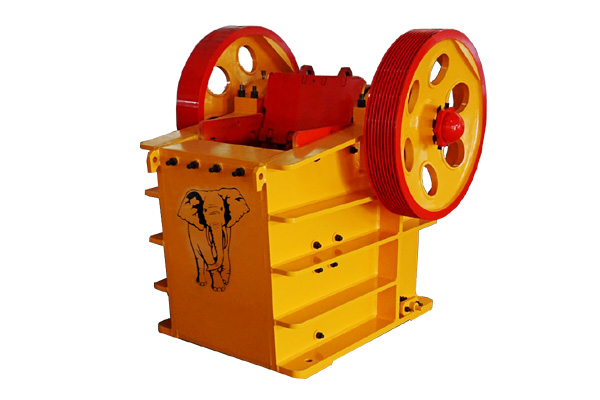

PEV Series Jaw Crusher features of great breaking ratio, uniform particle sizes, rational construction, reliable operation, easy maintenance and effective cost. It has been extensively used in many areas such as building materials, mining, chemical, metallurgical and water conservancy industries. This equipment is preferable to be selected as primary crushing machine for various materials with compressive strength up to 320 MPa.



MAIN FEATURES


Even final particles and highly crushing ratio

Simple construction, reliable operation

Easy maintenance, lower running cost





TECHNICAL SPECIFICATIONS

Model	Feed Opening(mm)	REV (R.P.M)	Power (kW)	Discharge Opening[in(mm)]Capacity(TPH)										Weigth (t)
				50	70	80	100	125	150	200	225	250	300
PEV600×400	600×400	275	30-40	26	38	45	60	75						6.4
PEV750×500	750×500	250	45-60	40	60	70	90	112	130					9.3
PEV900×600	900×600	250	60-75			105	130	160	182					14.1
PEV1050×650	1050×650	260	75-90				150	180	205	255				17.2
PEV1050×750	1050×750	230	90-115				180	210	237	294				22.3
PEV1200×800	1200×800	230	115-150				210	250	280	320	350			26.65
PEV1200×1000	1200×1000	200	130-150					265	302	370	402			45
PEV1350×800	1350×800	200	135-150				250	300	340	420	450			27.55
PEV1500×1000	1500×1000	200	185-225					310	350	440	480	510		50.2
PEV1500×1200	1500×1200	190	185-265						415	500	540	580	630	73.7
